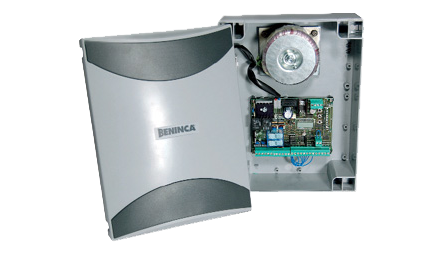

Control Panels 24 Vdc
| BRAIN 24 | LOGICA24.RI |
|---|---|
 |
 |
| • Control panel for 1 or 2 operators 24 Vdc ideal for swinging or sliding doors. • Simple to install thanks to the integrated display. • Amperometric anticrushing control. • Multiple operating logics. • Separate electronic regulation of torque and of work times for each motor. • Separate slowing-down on opening and closing for each motor. • Plug in terminals. • Integrated radio receiver 433.92 Mhz memory capability up to 64 codes. • Separate opening and closing limit switch inputs for each motor. • Programmable timer input for management of centralised closures. • Input for 8K2 safety sensitive edge. • Cycle counter. |
• Control panel for 1 or 2 operators, ideal for counterweights garage doors series ZED24. • Amperometric anticrushing control. • Automatic and semiautomatic function. • Simple diagnostics thanks to the leds that indicate the status of the inputs. • Electronic regulation of motor speed and torque. • Soft start and slowing down functions. • Plug in terminals. • Integrated radio receiver 433.92 Mhz memory capability up to 64 codes. • Inputs for opening and closing limit switches. • Inputs for step-by-step, open, close, stop buttons. • Input for 8K2 safety sensitive edge. • Input for photocell on closing. |
| DA.S04 |
|---|
 |
| • Control panel for car park saver series VE.SOR. • 24 Vdc motor power supply. • Plug for DA.RB battery charger card. • Possibility of managing up to 4 VE.SOR. • Step-by-step input. |
