Barriers

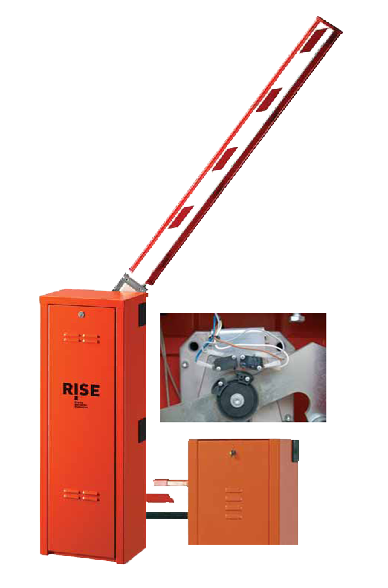

Road Barriers - BAR.400 _ BAR.400.I / From 2 m to 4 m

Features

• Electromechanical barrier for passages up to 4 m, intensive use.

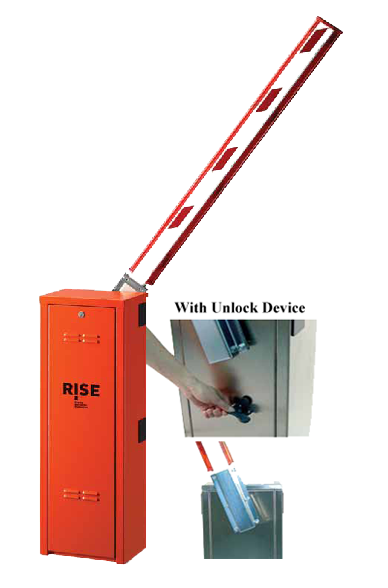

• Easy to use external manual unlock device.
• Stainless Steel version available.
• Speed, strength and soft stop/start adjustable for an always correct use and performance.
• Slowing down setup thanks to two adjustable limit switches.

Specifications

Technical Data	Bar.400	Bar.400l
Power Supply	230 Va.c. 50/60 Hz	230 Va.c. 50/60 Hz
Motor Power Supply	24 Vdc	24 Vdc
Absorbed Power	120 W	120 W
Max. Absorbed Current	4.5 A	4.5 A
Torque	130 NM	130 NM
Opening Speed	2.5”	2.5”
Operation Cycle	Intensive Use	Intensive Use
Protection Level	IP 54	IP 54
Operating Temprature	-20°C/+70°C	-20°C/+70°C
Lubrication	Grease	Grease
Weight	50 Kg.	50 Kg.

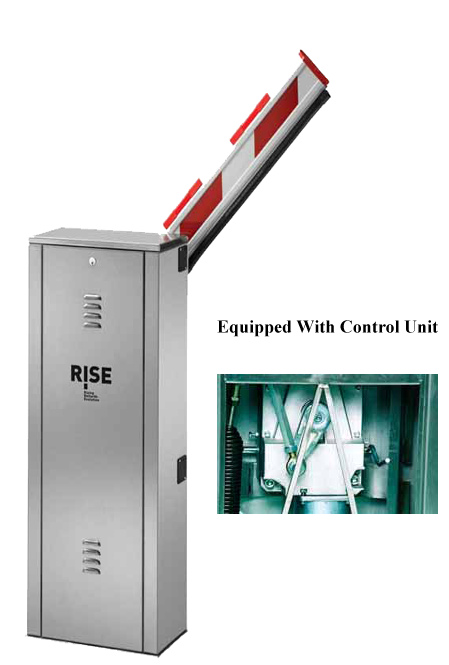

Road Barriers - BAR.500 _ BAR.500.I / up to 5 m

Features

• Electromechanical road barrier for passages up to 5 m.
• Intensive use.
• Easy to install and set up.
• Painted steel version available.

Specifications

Technical Data	Bar.500	Bar.500l
Power Supply	230 Va.c. 50/60 Hz	230 Va.c. 50/60 Hz
Motor Power Supply	24 Vdc	24 Vdc
Absorbed Power	160 W	160 W
Max. Absorbed Current	6 A	6 A
Torque	220 NM	220 NM
Opening Speed	6”	6”
Operation Cycle	Intensive Use	Intensive Use
Protection Level	IP 54	IP 54
Operating Temprature	-20°C/+70°C	-20°C/+70°C
Lubrication	Grease	Grease
Weight	61 Kg.	61 Kg.

Road Barriers - BAR.650 _ BAR.650.I / up to 6.5 m

Features

• Electromechanical road barrier for passages up to 6.5 m, intensive use.
• Easy to install and setup.
• Speed, Strength and soft stop/start adjustable for an always correct use and performance.
• Stainless Steel version available.

Specifications

Technical Data	Bar.650	Bar.650l
Power Supply	230 Va.c. 50/60 Hz	230 Va.c. 50/60 Hz
Motor Power Supply	24 Vdc	24 Vdc
Absorbed Power	200 W	200 W
Max. Absorbed Current	8 A	8 A
Torque	300 NM	300 NM
Opening Speed	8”	8”
Operation Cycle	Intensive Use	Intensive Use
Protection Level	IP 54	IP 54
Operating Temprature	-20°C/+70°C	-20°C/+70°C
Lubrication	Grease	Grease
Weight	105 Kg.	105 Kg.

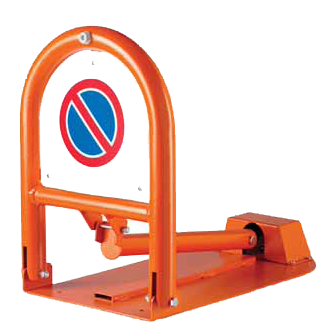

Car Park Saver - PARK _ PARK.M

Features

• Automation that safeguards the private car parks.
• Easy and fast installation on the ground.
• Automatic and manual versions available.

Specifications

Technical Data	Park	Park M
Operating Way	24V Automatic	Manual
Power Supply	230 Va.c. 50/60 Hz	-
Motor Power Supply	24 Vdc	-
Absorbed Power	25 W	-
Max. Absorbed Current	2 A	-
Opening Speed	9”	-
Operating Cycle	Intensive Use	-
Protection Level	IP 54	-
Weight	7,5 Kg.	6,80 Kg.
