Nirmal Fabricators Limited

Rise Products List

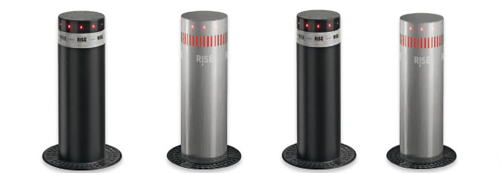

	VIGILANT 500	VIGILANT 500L	VIGILANT 800	VIGILANT 800L
Power Supply	230 Va.c. 50/60 Hz	230 Va.c. 50/60 Hz	230 Va.c. 50/60 Hz	230 Va.c. 50/60 Hz
Motor Power Supply	24 Vdc	24 Vdc	24 Vdc	24 Vdc
Absorbed Power	90 W	90 W	90 W	90 W
Absorbed Current 24 Vdc	6 A	6 A	7 A	7 A
Standby Consumption ( Up or Down )	10 W	10 W	11 W	11 W
Consumption During Lowering ( 1 Bollard 1 Control Panel )	1 A	1 A	1,4 A	1,4 A
Maximum Operating Frequency	1200 cycles/day	1200 cycles/day	1000 cycles/day	1000 cycles/day
Protection Level	IP 68	IP 68	IP 68	IP 68
Operating Temprature	-20°C/+50°C	-20°C/+50°C	-20°C/+50°C	-20°C/+50°C
Lubrication	Permanent Grease	Permanent Grease	Permanent Grease	Permanent Grease
Dimension Of Cylinder	Diameter 200x500 mm	Diameter 200x500 mm, Thickness 8 mm+1.2 mm Stainless Steel AISI 316	Diameter 200x800 mm, Thickness 8 mm	Diameter 200x500 mm, Thickness 8 mm+1.2 mm Stainless Steel AISI 316
Dimensions Of Foundation Case	Diameter 330x1008 mm	Diameter 330x1008 mm	Diameter 330x1358 mm	Diameter 330x1358 mm
Impact Resistance	11.000 J	11.000 J	11.000 J	11.000 J
Breakout Resistance	180.000 J	180.000 J	180.000 J	180.000 J
Kg Vehicle-Km/Hour	1.800-55	1.800-55	1.800-55	1.800-55
Raising Time 120 mm/sec	4"	4"	7"	7"
Lowering Time 160 mm/sec	3"	3"	5"	5"
Finish	Black Cataphoresis	Stainless Steel AISI 316	Black Cataphoresis	Stainless Steel AISI 316
Weight Kg ( Without Foundation Case )	84	90	112	120

	VIGILANT 500	VIGILANT 500L	VIGILANT 800	VIGILANT 800L
Power Supply	230 Va.c. 50/60 Hz	230 Va.c. 50/60 Hz	230 Va.c. 50/60 Hz	230 Va.c. 50/60 Hz
Motor Power Supply	24 Vdc	24 Vdc	24 Vdc	24 Vdc
Absorbed Power	90 W	90 W	90 W	90 W
Absorbed Current 24 Vdc	7 A	7 A	8 A	8 A
Standby Consumption ( Up or Down )	11 W	11 W	11 W	11 W
Consumption During Lowering ( 1 Bollard 1 Control Panel )	1.4 A	1.4 A	1.4 A	1.4 A
Maximum Operating Frequency	900 cycles/day	900 cycles/day	600 cycles/day	600 cycles/day
Protection Level	IP 68	IP 68	IP 68	IP 68
Operating Temprature	-20°C/+50°C	-20°C/+50°C	-20°C/+50°C	-20°C/+50°C
Lubrication	Permanent Grease	Permanent Grease	Permanent Grease	Permanent Grease
Dimension Of Cylinder	Diameter 254x500 mm, Thickness 10 mm	Diameter 254x500 mm, Thickness 10 mm+1.2 mm Stainless Steel AISI 316	Diameter 254x800 mm, Thickness 10 mm	Diameter 254x800 mm, Thickness 10 mm+1.2 mm Stainless Steel AISI 316
Dimensions Of Foundation Case	Diameter 360x360x1008 mm	Diameter 360x360x1008 mm	Diameter 360x360x1358 mm	Diameter 360x360x1358 mm
Impact Resistance	18.000 J	18.000 J	18.000 J	18.000 J
Breakout Resistance	240.000 J	240.000 J	240.000 J	240.000 J
Kg Vehicle-Km/Hour	2.500-55	2.500-55	2.500-55	2.500-55
Raising Time 120 mm/sec	4"	4"	7"	7"
Lowering Time 160 mm/sec	3"	3"	5"	5"
Finish	Black Cataphoresis	Stainless Steel AISI 316	Black Cataphoresis	Stainless Steel AISI 316
Weight Kg ( Without Foundation Case )	118	128	155	167
